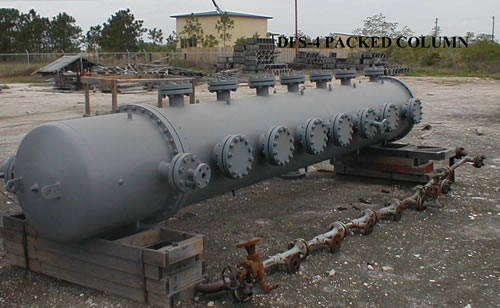

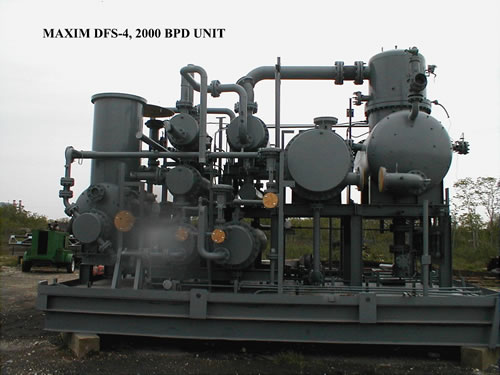

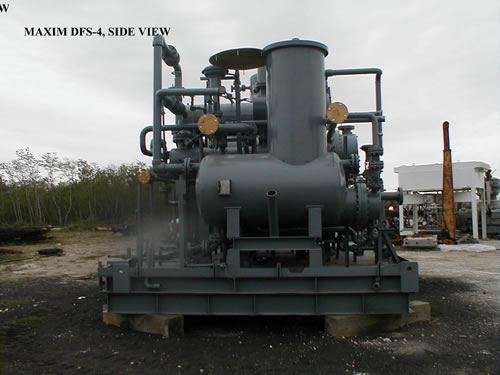

This unit is designed to produce naphtha or natural gasoline, jet fuel and diesel from a condensate or light crude of 30 to 32 API gravity containing low salt, low sulfur and less than 0.5% water. The plant will be of modular design and skid mounted including interconnecting piping for field commissioning.

1. Scope of Supply by JAS Marketing, Inc.

a. The process skid package that will include
    the following:

• First Stage Flash Separator
• Second Stage Flash Separator
• Crude feed heater
• High temperature residual cooler
• Low temperature residual cooler
• Condensate condenser crude feed heater
• Water- cooled condensate condenser
• Overhead condenser and crude reed heater
• Water-cooled overhead condenser
• Product cooler
• Residual pump
• Condensate pump
• Overhead pump
• Product pump
• Reflex pump
• Heat control valves
• Cooling water control valves
• Nitrogen purge connections Pressure gauges.

b. Desalter

c. Hot oil heater package consisting of:

• Burner assembly to fire offgas produced by DFS4 or oil.
• Liquid tube heater assembly
• Expansion tank
• Heater control package
• Circulating pump
• Flow control valve
• Exhaust stack and cap.

The heater is a completely packaged skid-mounted unit with fully automatic controls designed to heat a high temperature heat transfer fluid within the coil design to a temperature of 6300F. The heater is designed for 8,000,000 BTU/Hr. The pipe coil is designed in accordance with, Section I. An expansion tank is to be located above the heater at the site to provide for thermal expansion of the heat transfer fluid. This expansion tank shall be designed and built in accordance with Section VIII, ASME Code.

d. Air cooler

e. Control system:

f.  Air compressor

g. Documentation (2 copies)

h. Flare system

2. Standards

The plant will be manufactured to meet or exceed industry standards given by: ASME Code Section VII Div. 1, ANSI B31.3, ICEA, NEC, NEMA, NFPA and TEMA. All electronics, wiring and enclosures shall be Class I, Division II, Group D.

The units are assembled at our yard and hydro-tested prior to shipping to location for commissioning. This eliminates costly field modifications and allows for timely commissioning of plant.
